HJG Premium 3-Pin 120W LED Wiring Harness Kit | Backlit Handlebar Switch with Flashing Mode | Waterproof Coupler-to-Coupler Wiring | Relay & Fuse | For Fog Lights, Auxiliary Lights, Bikes, Cars, SUVs & ATVs

Simplify the installation and control of your auxiliary lighting with the HJG Premium 3-Pin 120W Wiring Harness Kit. Designed for fog lights, auxiliary lights and compatible vehicle accessories, this wiring kit provides a structured connection between the lighting system and the vehicle's power supply.

The kit includes a backlit handlebar switch, relay, fuse and waterproof couplers, allowing compatible lights to be connected without relying on complicated wire splicing. Its coupler-to-coupler design makes it suitable for motorcycle, car, SUV and ATV lighting installations.

Key Features

• 120W Power Support: Designed to support auxiliary lighting systems with a total rated load of up to 120W.
• 3-Pin Wiring Setup: Designed for compatible 3-pin auxiliary-lighting applications.
• Backlit Handlebar Switch: Provides convenient access to the lighting controls while riding.
• Flashing Mode: The switch includes a flashing function for compatible lighting setups.
• Waterproof Couplers: Helps protect electrical connections from moisture and outdoor riding conditions.
• Coupler-to-Coupler Installation: Designed for easier connection with compatible lights without complex wire splicing.
• Relay & Fuse Included: The kit includes a relay and fuse for the lighting circuit.
• Additional Couplers: Extra couplers are supplied for connecting fog lights with open wire ends.
• Universal Vehicle Application: Suitable for compatible motorcycles, cars, SUVs and ATVs.
• Durable Wiring Construction: Designed for regular use with auxiliary lighting systems.

Technical Specifications

120W Auxiliary Lighting Support

The HJG wiring harness is designed to support auxiliary lighting setups with a combined rated load of up to 120W.

This makes it suitable for compatible fog lights, driving lights and other auxiliary LED lighting systems. Before installation, confirm that the total wattage of the connected lights does not exceed the harness's stated capacity.

Backlit Handlebar Switch

The included backlit switch is designed for convenient operation from the handlebar area. Its illuminated design makes the switch easier to locate in low-light conditions.

The supplied product information also specifies a flashing mode, allowing compatible auxiliary lights to operate in a flashing configuration when selected.

Waterproof Coupler-to-Coupler Design

One of the main advantages of this harness is its coupler-to-coupler connection system.

Instead of requiring extensive wire cutting or splicing, compatible lights can be connected through the supplied couplers. The waterproof connectors are designed to provide a more secure connection for outdoor vehicle applications.

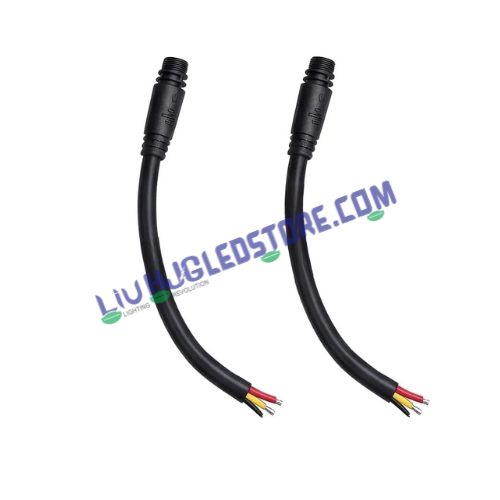

The kit also includes two additional couplers for fog lights or auxiliary lights with open wire ends.

Relay and Fuse Included

The wiring kit includes a relay and fuse, providing the necessary components for integrating compatible auxiliary lighting into the vehicle's electrical circuit.

Always select the correct fuse rating and ensure that the vehicle's electrical system can safely support the connected lighting load.

Vehicle Compatibility

The HJG Premium Wiring Harness is designed for compatible:

• Motorcycles
• Cars
• SUVs
• ATVs

It can be used for suitable:

• LED fog lights
• Auxiliary driving lights
• Spotlights
• Off-road lighting
• Other compatible 12V auxiliary lighting applications

Compatibility should be confirmed based on the lighting connector, electrical system, total wattage and available installation space.

Installation Guide

The coupler-to-coupler design is intended to simplify installation.

1. Turn off the vehicle before starting the installation.
2. Identify the battery/power connection and suitable mounting location for the relay.
3. Route the wiring safely away from moving or excessively hot components.
4. Connect compatible auxiliary lights using the supplied couplers.
5. Use the additional couplers where the fog-light wiring requires them.
6. Install the supplied fuse and relay according to the wiring arrangement.
7. Mount the backlit switch in a convenient handlebar location.
8. Check all connections before reconnecting power.
9. Test the lights and switch functions.
10. Secure the wiring properly before using the vehicle.

For complex installations or vehicles with sensitive electrical systems, professional installation is recommended.

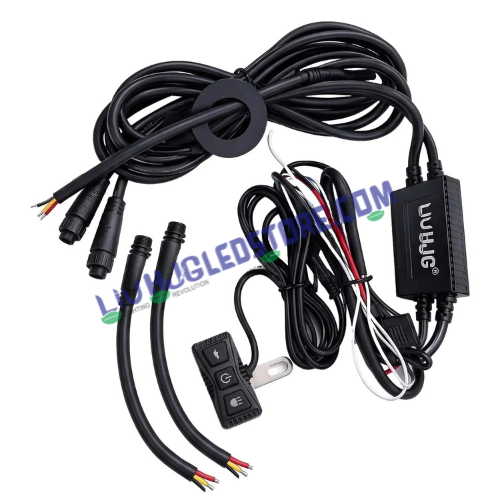

Package Includes

• 1 × HJG 3-Pin Wiring Harness Kit
• 1 × Wired Backlit Handlebar Switch
• 1 × Relay
• 1 × Fuse
• 2 × Additional Fog-Light Couplers

Why Choose the HJG Premium Wiring Harness?

The HJG Premium 3-Pin Harness is designed for riders and vehicle owners who want a cleaner and more organized way to connect auxiliary lighting.

With a 120W rated capacity, waterproof couplers, backlit switch, flashing mode, relay, fuse and additional connectors, the kit provides the key components needed for compatible fog-light and auxiliary-light installations.
