HJG JC-33 8-Lens Cube 50W LED Projector Fog Light | Single Unit | 6000 Lumens | White, Yellow, Warm White | Red Blue DRL Flash | 9V-32V DC

The HJG JC-33 8-Lens Cube LED Fog Light is a single-unit 50W projector fog light built around an advanced 8-lens cube-style projector housing. It delivers 6000 lumens at 6000K through a spot and flood beam combination with four lighting modes: white, yellow, warm white, and flash. The built-in red and blue DRL with strobe flash adds a strong road presence alongside the main beam. Constructed from high-quality aluminum with integrated heat sinks, it carries a waterproof and dustproof rating and operates on 9V to 32V DC. Compatible with bikes, cars, SUVs, trucks, and off-road vehicles.

8-Lens Cube Projector Design

The cube-style housing features eight individual projector lenses, each aligned to deliver an even, clearly defined beam across the road surface. The eight-lens layout improves light distribution and focus compared to lower-lens-count fog lamps, reducing dark patches and uneven beam edges while maintaining strong forward output for long-distance road visibility. The JC-33 carries two more lenses than the JC-32 model, delivering a noticeably wider and more evenly spread beam pattern.

50W Output and 6000 Lumens at 6000K

The 50W LED output produces up to 6000 lumens of brightness at 6000K, delivering a crisp, focused white light strong enough for night driving, fog, rain, and low-light road conditions. The spot and flood beam combination covers both long-range forward reach and wide lateral road spread from a single compact cube unit.

Four Lighting Modes: White, Yellow, Warm White and Flash

Four distinct beam modes are available. White mode for maximum road definition on clear nights. Yellow mode for fog and rain, where the warmer colour temperature reduces scatter from moisture and improves contrast on wet road surfaces. Warm white mode produced by the combined white and yellow output for balanced illumination in mixed or transitional weather conditions. Flash mode for rapid alternating beam activation, increasing road presence and visibility from a distance on highways and in poor weather.

Red and Blue DRL with Strobe Flash

The integrated red and blue DRL operates with a strobe flash effect, firing red and blue light in alternating bursts for strong and visible road presence. The DRL runs alongside the main beam modes without interference, allowing both to function simultaneously based on the wiring configuration chosen during installation.

High-Quality Aluminum with Integrated Heat Sinks

The body is constructed from high-quality aluminum with integrated heat sinks built directly into the housing. The heat sink design draws heat away from the LED chips during continuous operation, keeping junction temperatures stable and preventing brightness reduction over extended use. This construction supports a rated lifespan exceeding 50,000 hours.

Waterproof and Dustproof Build

The waterproof and dustproof construction keeps each unit performing consistently in rain, fog, mud, and harsh outdoor environments. The sealing holds up under repeated outdoor exposure without degradation affecting the internal LED assembly or beam quality across the full rated lifespan.

Voltage Range: 9V to 32V DC

This fog light operates on 9V to 32V DC input, making it directly compatible with bikes, cars, SUVs, trucks, and off-road vehicles on both 12V and 24V electrical systems. No additional voltage converter is required for standard vehicle fitment.

Adjustable Stainless Steel Mounting Brackets

The package includes adjustable stainless steel mounting brackets that allow precise beam angle and position adjustment after installation. The stainless steel construction resists rust and corrosion, maintaining bracket rigidity and the set beam direction under road vibration and prolonged outdoor exposure.

Mounting Options

This fog light can be fitted on front bumpers, grilles, bull bars, roof racks, or rear bumpers of a vehicle, functioning as a direct replacement or addition for fog lights, auxiliary lights, or reverse lights depending on the mounting position selected.

Fitment and Installation

Compatible with bikes, cars, SUVs, trucks, and off-road vehicles. Wiring connects to the vehicle's existing 9V to 32V DC auxiliary or fog light circuit. Professional installation is recommended for correct beam alignment and safe wiring connections.

Key Specifications

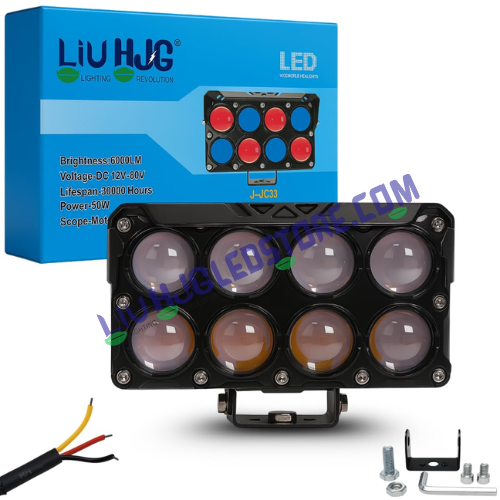

What Is in the Box

• 1 x HJG JC-33 8-Lens Cube LED Fog Light (50W)

Frequently Asked Questions

Is this a single unit or a set?

This listing is for a single fog light unit. Order two if you need a matching pair for both sides of the vehicle.

What is the difference between the JC-33 and JC-32?

The JC-33 has 8 projector lenses compared to the 6 lenses on the JC-32, delivering a noticeably wider and more evenly spread beam pattern with improved light distribution across the road surface.

What lighting modes are available?

Four modes are available: white for clear night driving, yellow for fog and rain, warm white produced by combined white and yellow output for mixed weather, and flash mode for rapid alternating beam activation.

What is the red and blue DRL feature?

The red and blue DRL with strobe flash fires alternating red and blue light for strong road presence from a distance. It runs alongside the main beam modes based on the wiring configuration during installation.

What does the 8-lens projector design do?

The eight individual projector lenses improve light distribution and focus across the road surface, reducing dark patches and uneven beam edges while maintaining strong long-range forward output.

What is the brightness and colour temperature?

This fog light produces up to 6000 lumens at 6000K, delivering crisp, focused white light suitable for night driving, fog, and low-light road conditions.

What voltage does this fog light support?

It operates on 9V to 32V DC, covering bikes, cars, SUVs, trucks, and off-road vehicles on both 12V and 24V electrical systems.

What vehicles are these compatible with?

They fit bikes, cars, SUVs, trucks, and off-road vehicles using the vehicle's existing auxiliary or fog light wiring circuit.

Where can this fog light be mounted?

It fits on front bumpers, grilles, bull bars, roof racks, or rear bumpers as a replacement or addition for fog lights, auxiliary lights, or reverse lights.

What is the rated lifespan?

The rated lifespan exceeds 50,000 hours with the integrated aluminum heat sink system active during operation.

Is professional installation needed?

Professional installation is recommended for correct beam alignment and safe wiring connections.
